Camso X4S (UTV)

Name: Camso X4S (UTV)
Brand: Camso
Availability: OutOfStock

Call Email

Call for Price

Overview

Explore more for less

Built for outdoor work, this track system makes the most of 3-seater side-by-sides (400 to 700 CC). It provides the right traction and flotation for tough weather days at the ranch and during hunting season.

Specifications

Model

X4S (UTV)

Category Name

ATV/UTV

Year

2026

Sale Type

New

Manufacturer

Camso

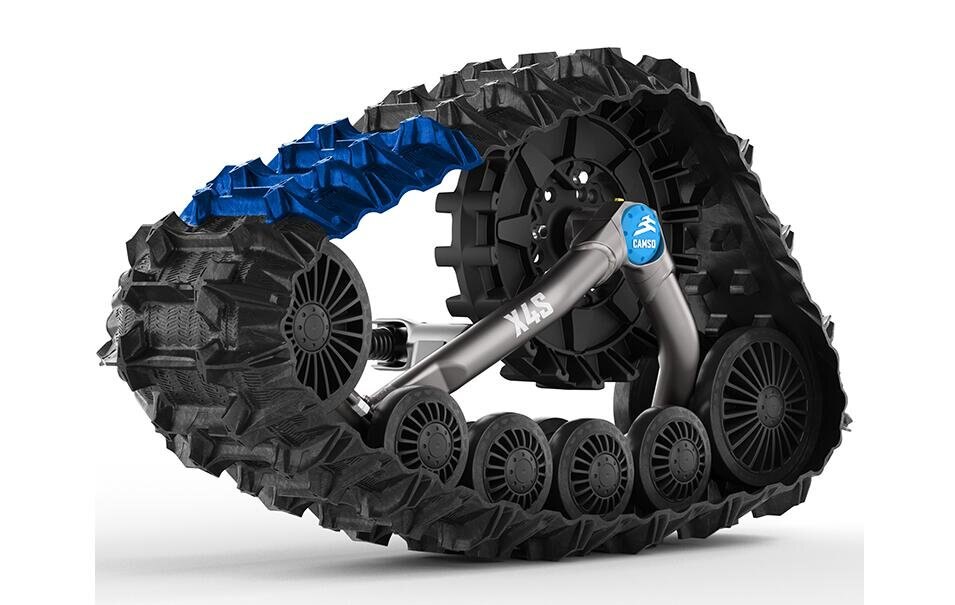

track design

Camso’s Flex-Track Design

Front-mounted tracks with flexible sides and slight curve toward the inside
Stable handling
More comfortable ride than traditional flat tracks
Precise steering for pleasant long-distance riding and long working hours

frame

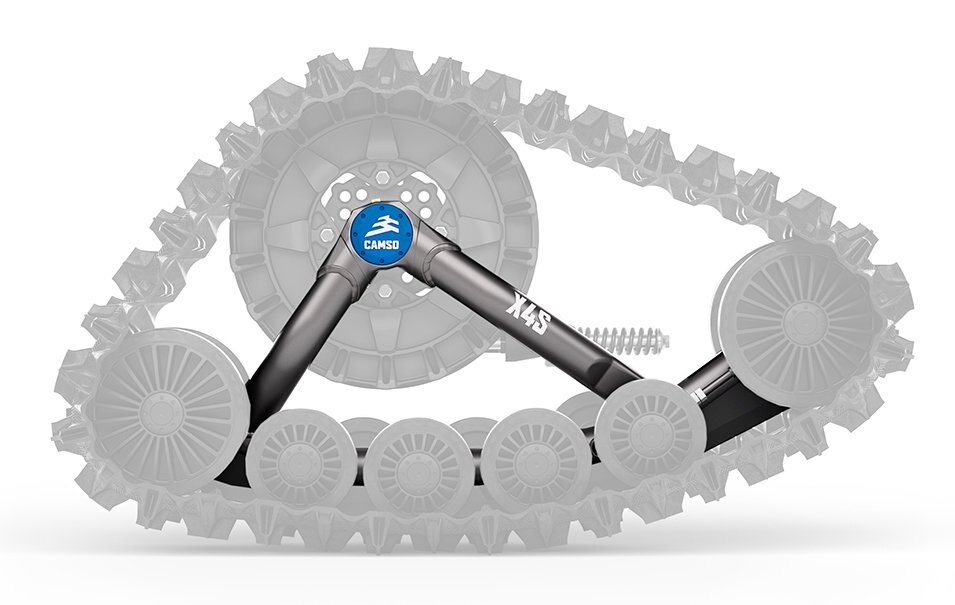

Solid Steel Frame

New geometry provides better front steering and handling

sprockets and wheels

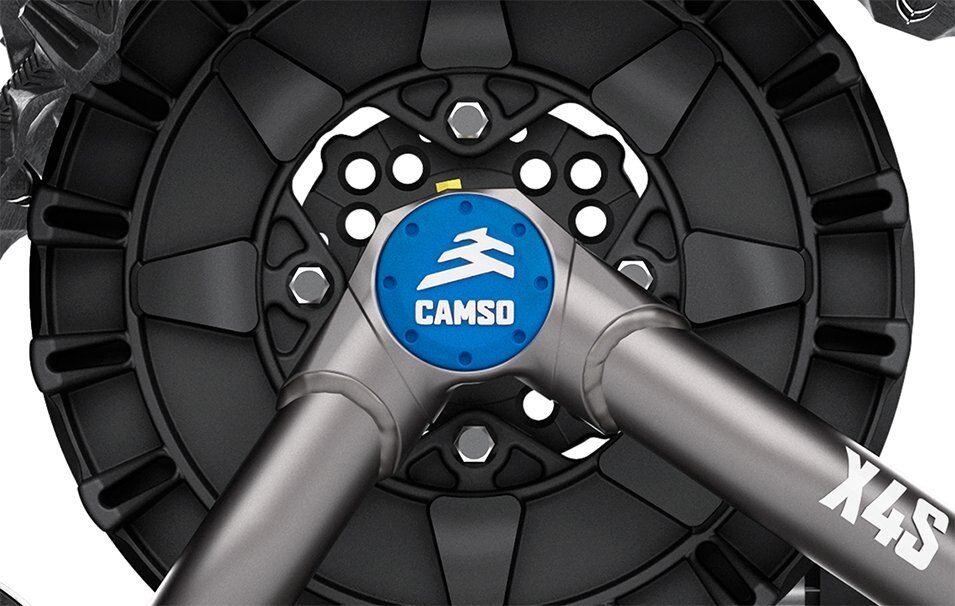

Bearing Housing

Double bearing design with oil bath lubrification
Double bearing hubs and oil bath housing for optimum durability

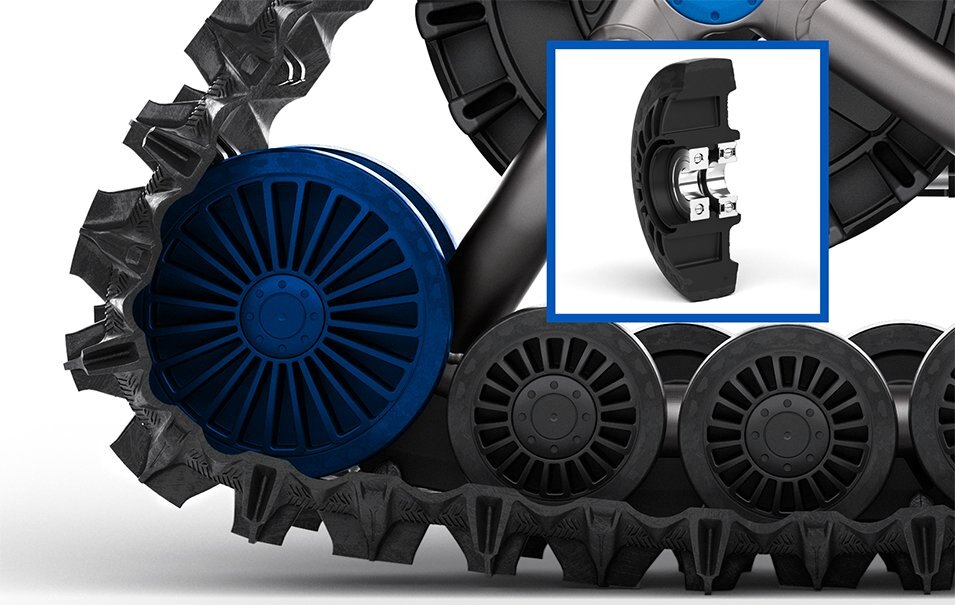

Idler And Mid-Roller Wheels

Increased width (26 mm) provides better track support
Double bearing bolted on wheels for easier serviceability
Standard and replaceable sealed bearings for economic maintenance

specifications for all product size(s)

To find products that meet your vehicle needs, specify your requirements using the product selector.

System								Rubber Track
Weight		Height		Length		Width	Mounting Hardware	Width	Length	Width	Length	Lug Height
Front	Rear	Front	Rear	Front	Rear	Width	Weight	Front		Rear		Front	Rear
kg	kg	mm	mm	mm	mm	mm	kg	cm	cm	cm	cm	mm	mm
32.9	36	604.5	589.3	1016	1079.5	558.8	2.83	29.2	237.2	31.8	250.2	31.8	31.8

technical specifications

System	Camso X4S
Vehicle size	400 cc to 700 cc
Offset (length)	Front: 24 in. (609 mm) Rear: 27 in. (685 mm)
Offset (width)	6 in. (153 mm)
Ground clearance	Front height: 15 3/8 in. (390 mm) Rear height: 14 5/8 in. (372 mm)
Weight (average)	Front: 72.6 lb (33kg) Rear: 79.4 lb (36 kg)
Height	Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm)
Length	Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm)
Width	Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm)
Rubber Track
Width	Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm)
Length	Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm)
Lug height	Front: 1.25 in. (32 mm) Rear: 1.25 in. (32 mm)
Rubber track	Front: Flex Rear: Flat
Performance
Ground surface	2000 sq. in. (1.30 m²)
Maintained speed (average)	⅔
Specification
Drive type	Internal drive
Frame	Carbon steel
Idler & mid-roller Wheels/Tire	134 & 202 mm double bearings wheel. Standard and replacable sealed bearings. Elastomer outer band. Bladder-type wheel cap.
Hub and bearin.g	Cast steel multi-bolt (4) pattern hub.
Tandem & suspension	Mono front tandem on pivot point with bolted wheels.
Maintenance
installation time (average)	2 hrs
Subsequent	1 hr
