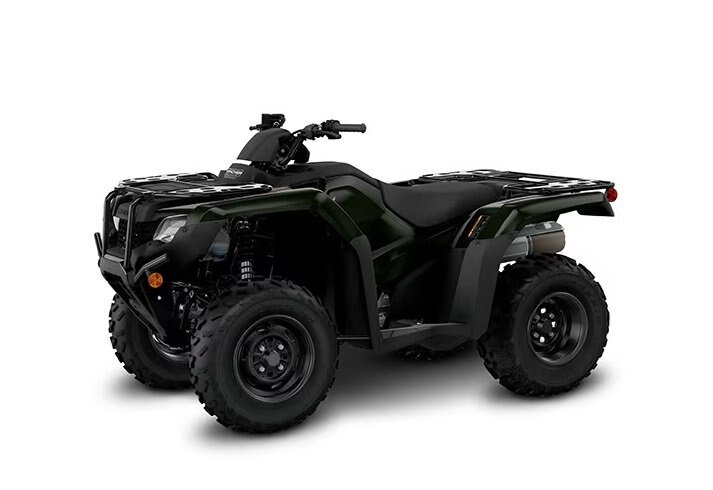

2027 Honda Rancher TRX420 Manual Shift Black Forest Green

Name: 2027 Honda Rancher TRX420 Manual Shift Black Forest Green
Brand: Honda
Availability: OutOfStock

Call Email

Call for Price

Contact Us Get Approved Value a Trade Get Directions Get Directions Print

Overview

Honda TRX420 Rancher Utility ATV

The Honda Rancher is a dependable off‑road ATV engineered to provide unmatched durability, quality, and reliability. Versatile and capable, it’s the perfect fit for any job or adventure. Built to perform and designed to last, the Rancher delivers excellence without compromise.

Specifications

Model

Rancher

Category Name

ATVs

Year

2027

Sale Type

New

Manufacturer

Honda

Color

Black Forest Green

Tires

Front: 24 x 8-12 Rear: 24 x 10-11

Width

1,205 mm (47.4 in)

Brakes

Front: dual 190 mm discs Rear: 160 mm sealed mechanical drum

Length

2,104 mm (82.8 in)

Warranty

12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

Wheelbase

1,269 mm (50 in)

Curb Weight

278 kg (612 lb)

Engine Type

Liquid-cooled longitudinally mounted single-cylinder

Final Drive

2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential

Valve Train

OHV, two valves

Displacement

420 cc

Transmission

Five-speed with automatic clutch, reverse and ultra-low first gear

Bore & Stroke

86.5 mm x 71.5 mm

Fuel Delivery

PGM-FI electronic fuel injection

Fuel Capacity

14.7 litres, including 4.9 litre reserve

Rack Capacity

Front rack: 30 kg (66 lb) Rear rack: 60 kg (133 lb)

Rear Suspension

Swingarm with single adjustable hydraulic shock; 170 mm (6.7 in) travel

Towing Capacity

385 kg (850 lb)

Front Suspension

Independent double wishbone; 170 mm (6.7 in) travel

Ground Clearance

181 mm (7.1 in)

Compression Ratio

9.9 : 1

engine & drivetrain

Maximum efficiency

The rugged OHV liquid-cooled, fuel-injected 420 cc longitudinally mounted engine allows direct driveshaft alignment to both front and rear wheels for maximum drivetrain efficiency.

Broad Powerband

Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.

Reduced vibration

Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.

Easy start

Convenient electric starting, with an automatic internal-decompression system, gets you going quickly.

Fuel Efficient

Programmed Fuel Injection (PGM-FI) system improves power delivery and throttle response, and increases fuel efficiency for extended range.

Recoil Starter

Also equipped with a recoil starter as a back-up.

Tough Transmission

Rugged five-speed transmission with foot shifter and automatic clutch lets you precisely choose the gear you need. Super-heavy duty automatic clutch with low-rpm engagement provides excellent drivability and towing capacity.

Convenient selector

Handy 4WD/2WD selector lever, mounted on the left-front panel, allows you to engage 4WD when needed for the tough stuff and 2WD when conditions allow.

Strong output

Powerful alternator has 416 watts of output available.

Quiet operation

Stainless-steel exhaust system includes a USDA- qualified spark arrester/muffler designed for quiet operation and long-lasting performance.

chassis & suspension

Double-cradle steel frame

The double-cradle steel frame developed with computer-aided engineering features increased stiffness for even more precise handling and a smoother ride.

Adjustable suspension

Adjustable spring preload featured on all shocks allows suspension tuning to match varying loads and riding conditions.

Precise handling

Tough, 24-inch diameter front and rear tires provide excellent ground clearance of 181 mm (7.1 in) while maintaining great handling characteristics. Front and rear suspension feature 170 mm (6.7 in) of travel at both ends for a plush and controlled ride.

Trail ready

Enclosed-axle type swingarm optimizes stiffness for improved toughness and durability, and excellent handling performance. Rubber swingarm pivot bushings provide increased low-speed ride comfort and extra durability.

Durable design

Plastic CV joint boots are durable and tear- resistant with sealed steering-knuckle bearings for extended durability. Steering-mechanism design allows a tight turning radius for excellent manoeuvrability.

Stopping power

Large 190 mm dual front hydraulic disc brakes provide strong, consistent stopping power. Rear drum brake is located inside the right rear wheel for improved durability and increased ground clearance.

additional features

Rugged design

Durable bodywork offers excellent mud and debris protection. Full-length synthetic lower skidplate with integrated front brush guard provides extra protection against damage from rocks, sticks or other obstacles.

Strong visibility

Twin-headlight system features powerful 35-watt bulbs for improved light distribution.

Easy maintenance

One-piece tank/side cover allows easy access for maintenance with no tools required.

Extended range

Large fuel tank with 14.7-litre capacity (including a 4.9-litre reserve) provides extended range. Fuel pump derived from Honda automobile technology mounts in the fuel tank for better heat isolation and increased filter life.

Pro-ConnectTM Rack System

Pro-ConnectTM Rack System for accessories. Mount accessories directly and quickly to the rear or front rack of your Rancher using easy Pro-ConnectTM Rack System (no tools required). Our purpose-built line of Pro-ConnectTM accessories helps to keep your gear in place and more secure wherever you place your items on the rack while maximizing storage. Front and rear steel-tube carriers feature large steel plates and additional tie-down points for improved load security.

Superior comfort

Seat padding is both thick and soft for excellent comfort.

Powerful towing

Heavy-duty trailer hitch with 385 kg (849 lb) towing capacity.

Multi functional

A host of optional accessories allow you to tailor your Rancher® to your needs.
