Camso UTV 4S1

Name: Camso UTV 4S1
Brand: Camso
Availability: OutOfStock

Call Email

Call for Price

Contact Us Get Approved Value a Trade Get Directions Get Directions Print

Overview

Tough and ready for the long haul

Built for the extremes, this track system pushes the performance of your side-by-side (400 to 1000 CC) to the next level. Get traction, torque and horsepower for fishing on ice, hunting in swamps, ranching in mud and hauling in deepsnow.

Specifications

Model

UTV 4S1

Category Name

ATV/UTV

Year

2026

Sale Type

New

Manufacturer

Camso

track design

Camso’s Exclusive Flex-Track Design

Front-mounted tracks with flexible sides and slight curve toward the inside
Stable handling
More comfortable ride than traditional flat tracks
Precise steering for pleasant long-distance riding and long working hours

frame

Solid Steel Frame

Open light-weight design
Improved durability and performance
Easily sheds snow, mud, and debris

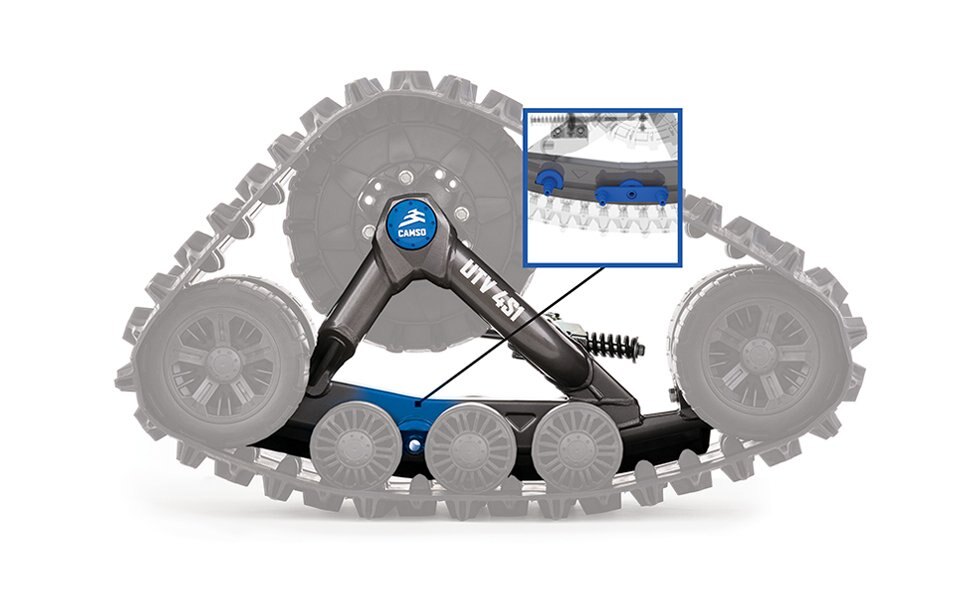

Tandem Stabilizer and Wheel Shaft

Rubber-mounted shafts
Eliminates need for greasing
Absorbs shocks for a smoother and more stable ride

sprockets and wheels

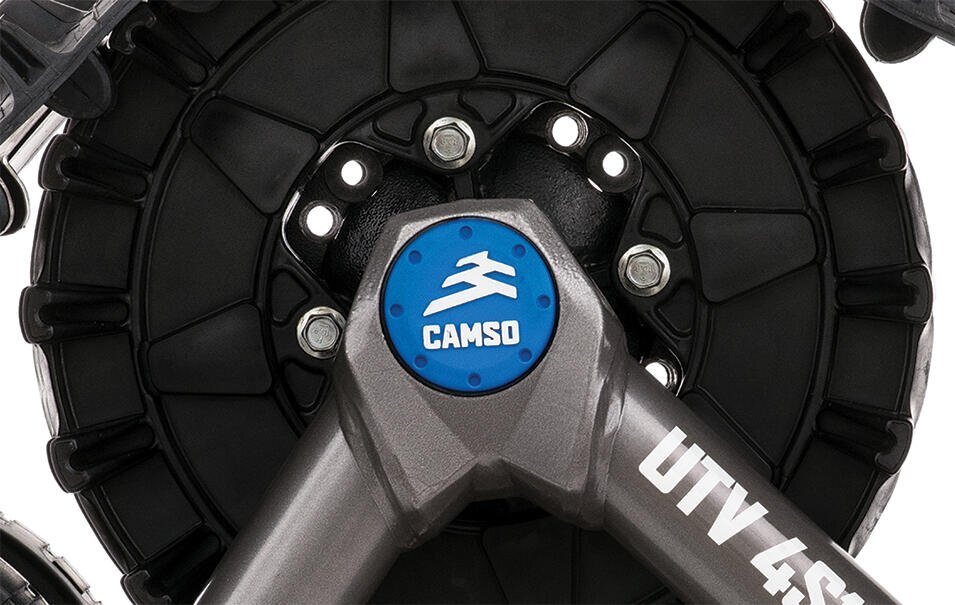

Bearing Housing

Triple bearing design with oil bath lubrication
Improved bearing durability
Stainless sleeves for greater reliability

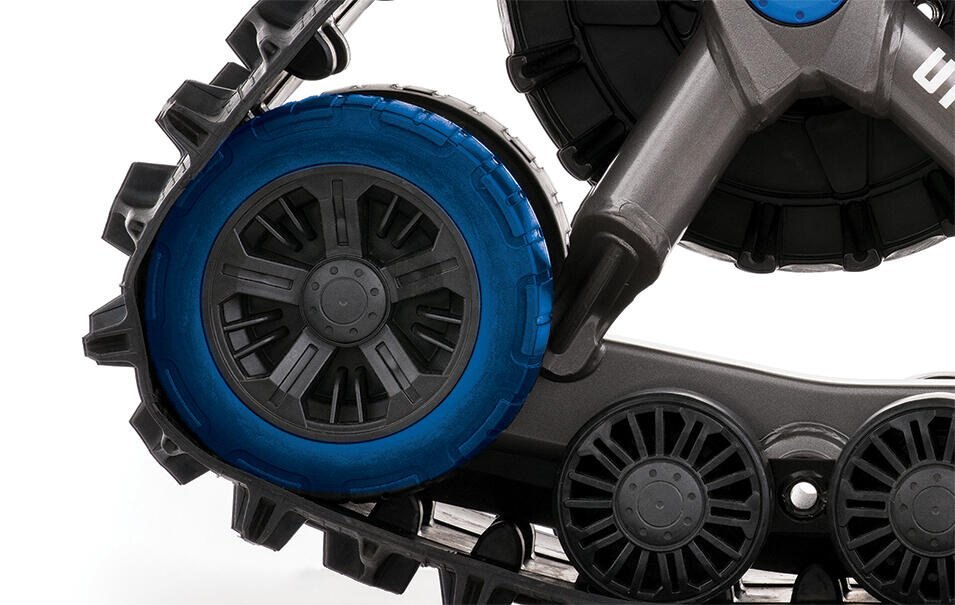

Puncture-Proof Tires

High-density tire with adjusted shape
Reduced friction and wear
Maximizes shock absorption to improve ride quality
Delivers trouble-free performance

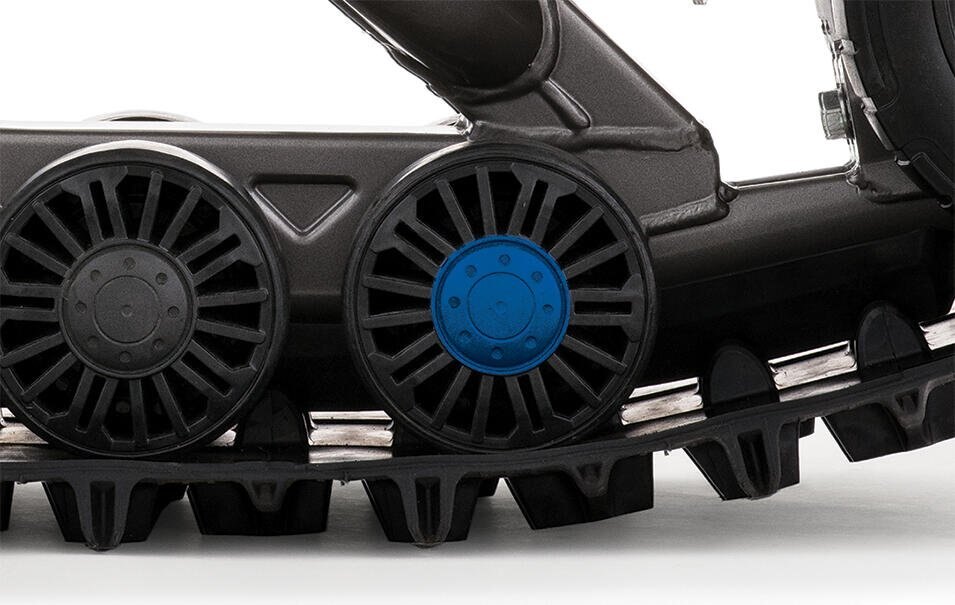

Wheel and Seal

Enhanced wheel seal design
Improved sealing and guiding and reduced wear
Eliminates water absorption due to temperature variations

specifications for all product size(s)

To find products that meet your vehicle needs, specify your requirements using the product selector.

System								Rubber Track
Weight		Height		Length		Width	Mounting Hardware	Width	Length	Width	Length	Lug Height
Front	Rear	Front	Rear	Front	Rear	Width	Weight	Front		Rear		Front	Rear
kg	kg	mm	mm	mm	mm	mm	kg	cm	cm	cm	cm	mm	mm
46.7	54.4	635	627.4	1079.5	1320.8	635	2.83	31.8	250.2	35.6	296.4	28.6	28.6

technical specifications

System	UTV 4S1
Offset (length) 1	Front: 26.5 in. (673 mm) Rear:35 in. (889 mm)
Offset (width) 2	7.25 in. (184 mm)
Weight	Front: 103 lb (47 kg) Rear: 120 lb (54 kg)
Height	Front: 25 in. (637 mm) Rear: 24.7 in. (626 mm)
Length	Front: 42.5 in. (1081 mm) Rear: 52 in. (1321 mm)
Width	Front: 12.5 in. (318 mm) Rear: 14 in. (356 mm)
Mounting hardware weigth	Approx. 6.25 lb (2.75 kg)
RUBBER TRACK
Width	Front: 12.5 in. (318 mm) Rear: 14 in. (356 mm)
Length	Front: 98.5 in. (2507 mm) Rear: 116.7 in. (2964 mm)
Lug height	Front: 1.125 in. (29 mm) Rear: 1.125 in. (29 mm)
PERFORMANCE
Ground surface	2520 sq. in. (1.62 m²)
Ground clearance (average)	Increased by 5 in. (127 mm)
Maintained speed (average)	⅔
SPECIFICATION
Drive type	Internal drive
Sprocket	15 to 18 teeth
Rubber track	Front: Flex Rear: Flat
Frame	Carbon steel
Idler & mid-roller Wheels/Tire	132 mm double-bearing mid-roller wheels (width: 50 mm) 241 mm double-bearing flat free tires. Bladder-type wheel cap and face seal.
Guide	Molded UHMW
Hub and bearing	Oiled 3-bearing with forged steel multi-bolt. (4-5) pattern hub.
Tandem & suspension	Rubber mount steel tandem. Rubber mount aluminium shaft axle. Maintenance free.
Anti-rotation	Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design.
MAINTENANCE
Installation time	< 2 hr
Subsequent	< 1 hr

literature

Name	Link
View product details	Download

Videos

Documents

UTV-4S1_EN.pdf
